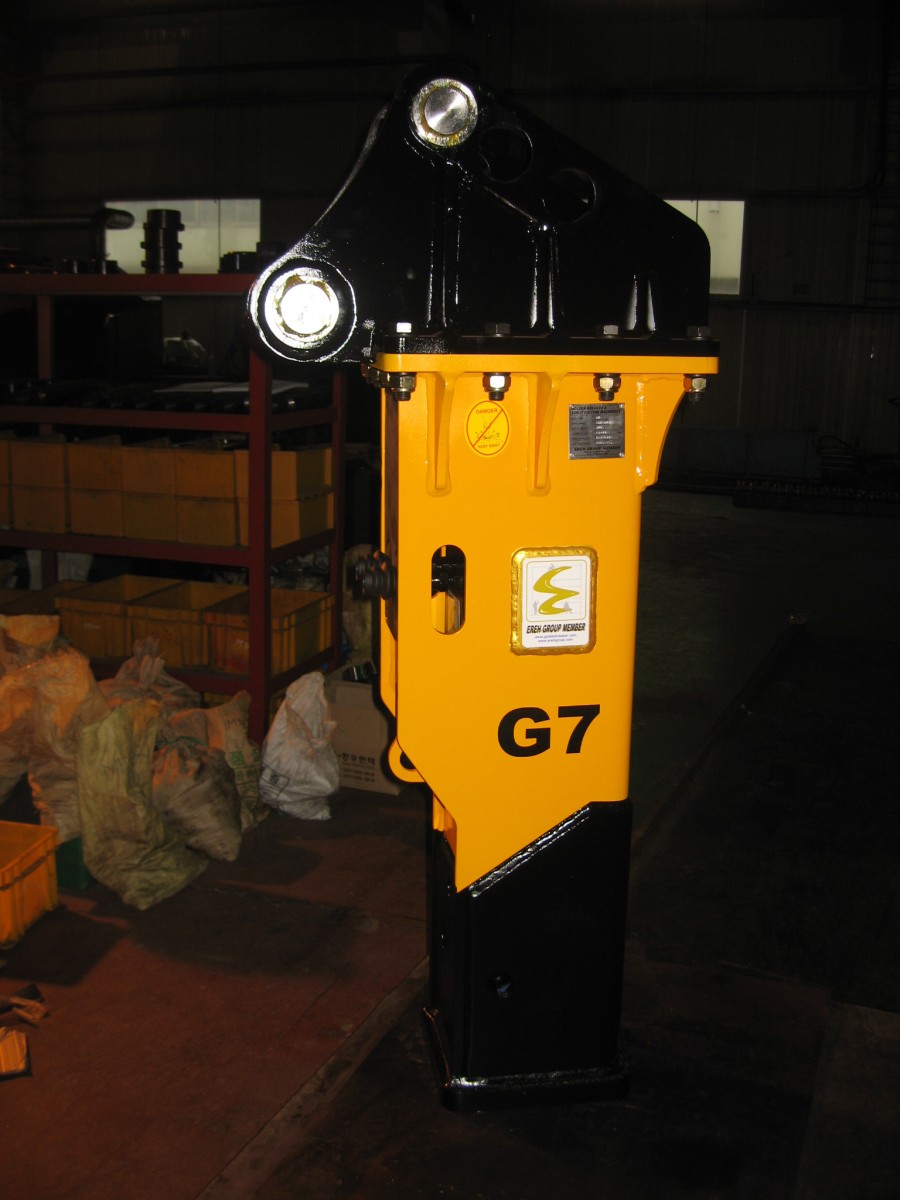

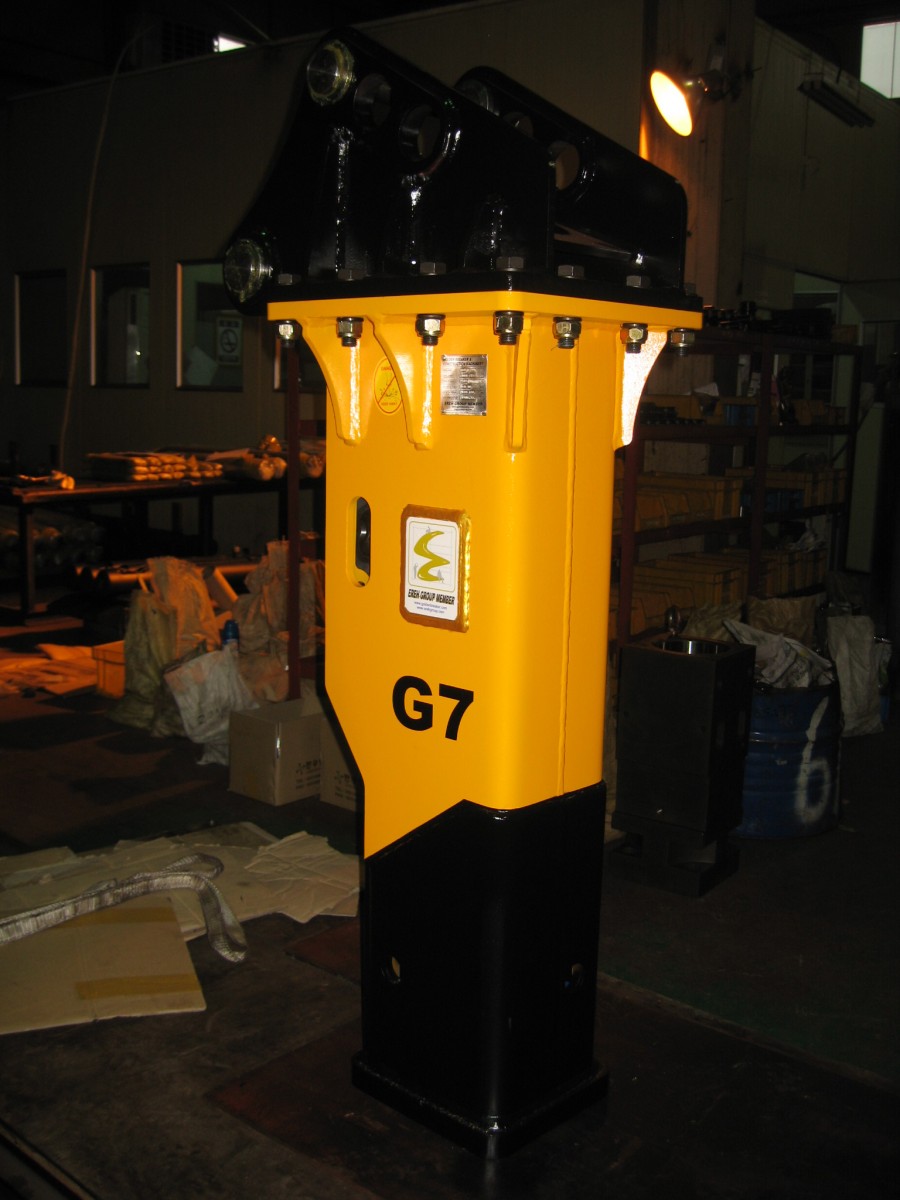

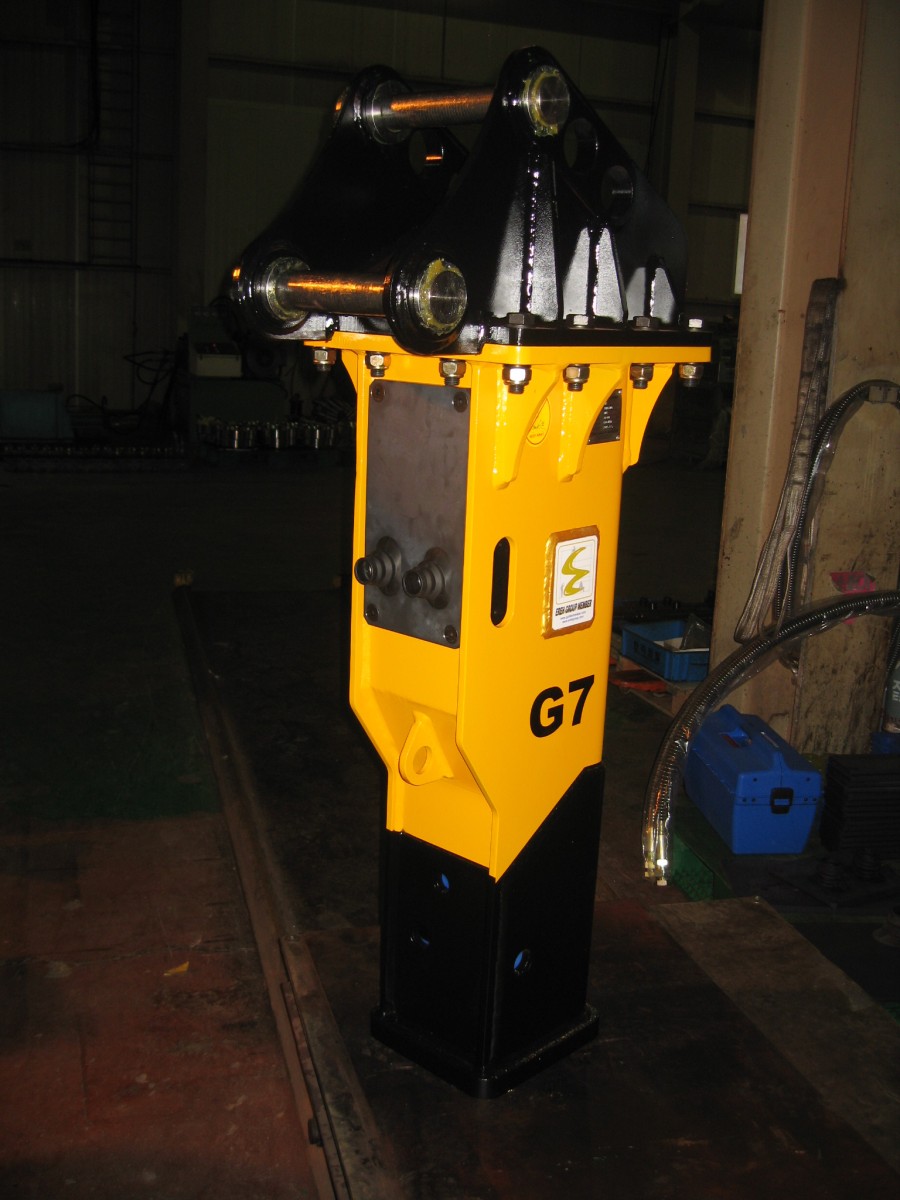

G7 Multi Backhoe Breaker for CAT416, CAT420, JCB3CX



1. Operating Weight  : 375 kgs(828 lbs)

2. Main body Weight : 185 kgs(185 lbs)

3. Impact Energy : 630 J (856 ft.lbs)

4. Impact Rate : 450 ~ 1,100 b.p.m

5. Pressure ( setting, Excavator ) : 160 bar (2,320 psi)

6. Pressure ( Operating, Breaker ) : 100 ~ 130 bar (1,377 ~ 1,885 psi)

7. Pressure ( Back Head, N2, Breaker ) : 15 bar (218 psi)

8. Pressure ( Accumulator, N2, Breaker) : No Accumulator...

9. Required Oil Flow (l/min) : 40 ~ 90 lpm

10. Tool : Diameter - 75mm(2.95 inch),
              Length - 800mm(31.50 inch),
              Weight -  23kgs(50.71 lbs)

11. Carrier Weight(Back Hoe Loader) - 7 ~ 10 tons (15,432 ~ 22,046 lbs)

12. Carrier Weight(Excavator) - 5 ~ 7 tons (11,023 ~ 15,432 lbs)
