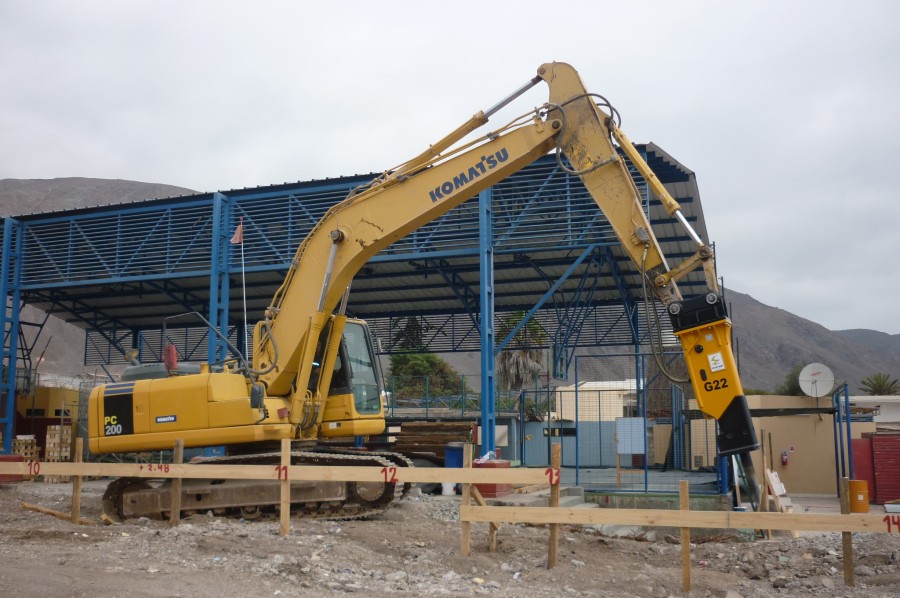

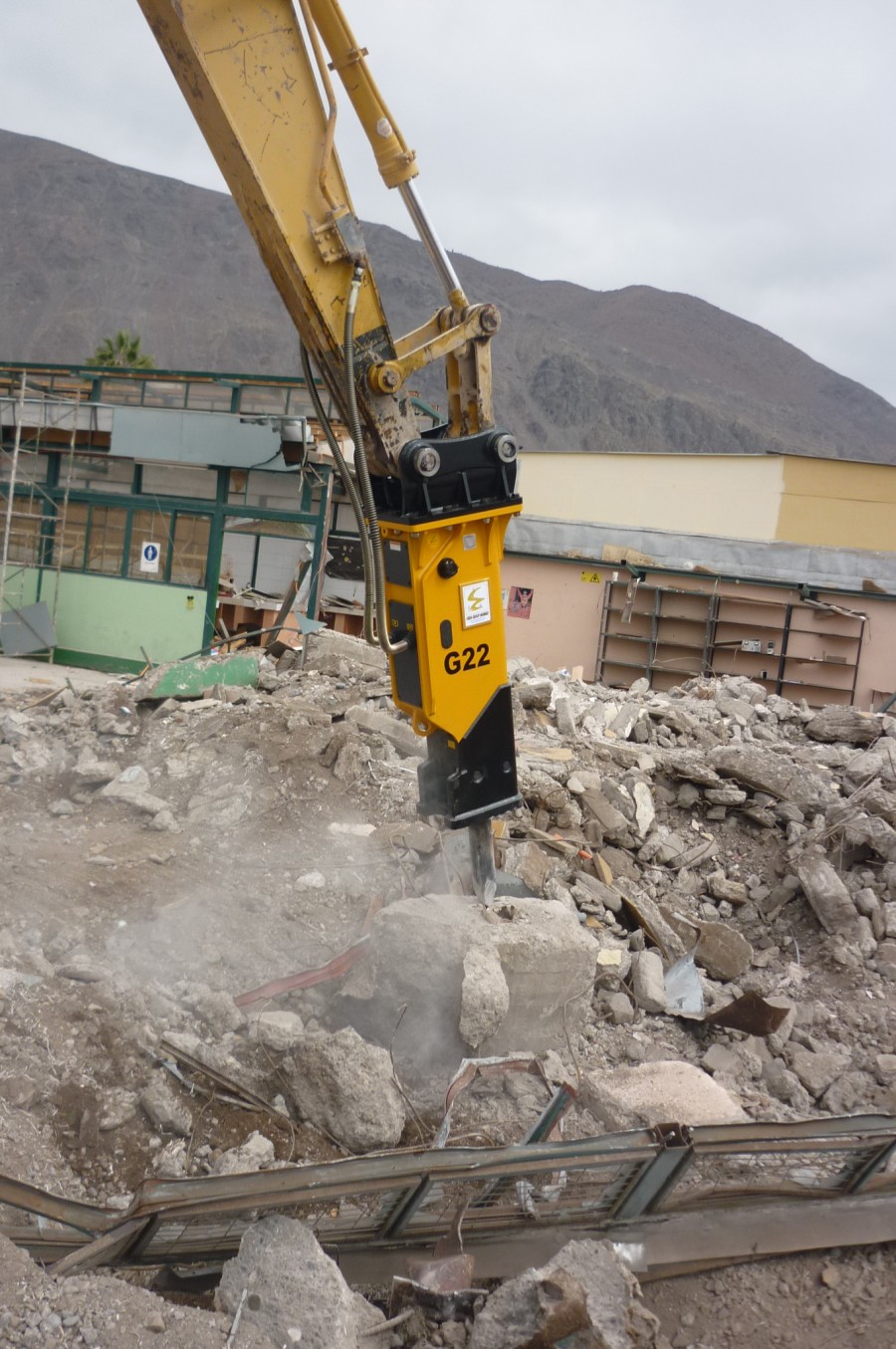

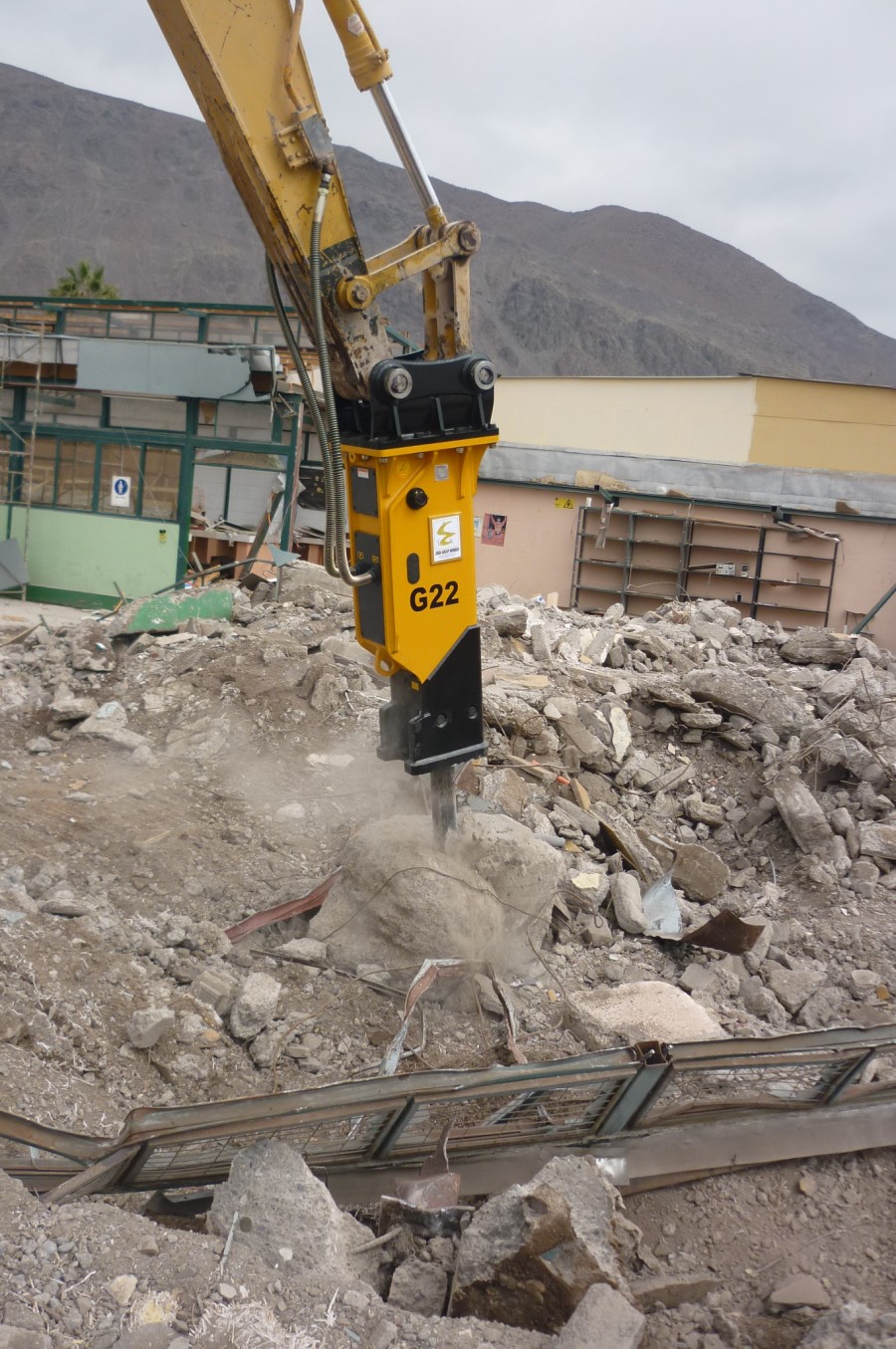

JOB SITE PHOTO OF G22 Hydraulic Breaker

1. Operating Weight : 1,300 kgs(2,866 lbs)

2. Main body Weight : 530 kgs(1,168 lbs)

3. Impact Energy : 2,700 J (3,669 ft.lbs)

4. Impact Rate : 350 ~ 650 b.p.m

5. Pressure ( setting, Excavator ) : 200 bar (2,900 psi)

6. Pressure ( Operating, Breaker ) : 150 ~ 170 bar (2,175 ~ 2,465 psi)

7. Pressure ( Back Head, N2, Breaker ) : 12 bar (174 psi)

8. Pressure ( Accumulator, N2, Breaker) : 60 bar (870 psi)

9. Required Oil Flow (l/min) : 90 ~ 120 lpm

10. Tool : Diameter - 125mm(4.92 inch), Length - 1,100mm(43.31 inch), Weight - 101kgs(222.67 lbs)

11. Carrier Weight(Excavator) - 15 ~ 22 tons (33,069 ~ 48,502 lbs)

12. Application Excavator Model

    CATERPILLAR - CAT318, CAT320, CAT321,

    KOMATSU - PC180, PC200, PC210, PC220

    HITACHI - EX200, EX210, EX220, ZAXIS200, ZAXIS230

    DOOSAN - SOLAR170, DH170, DH200, SOOLAR200, DH220, SOLAR220, S210W

    HYUNDAI - ROBEX1702, ROBEX180LC, ROBEX200LC, ROBEX220LC

    VOLVO - EC(EW)150, EW160, EC200, EC210

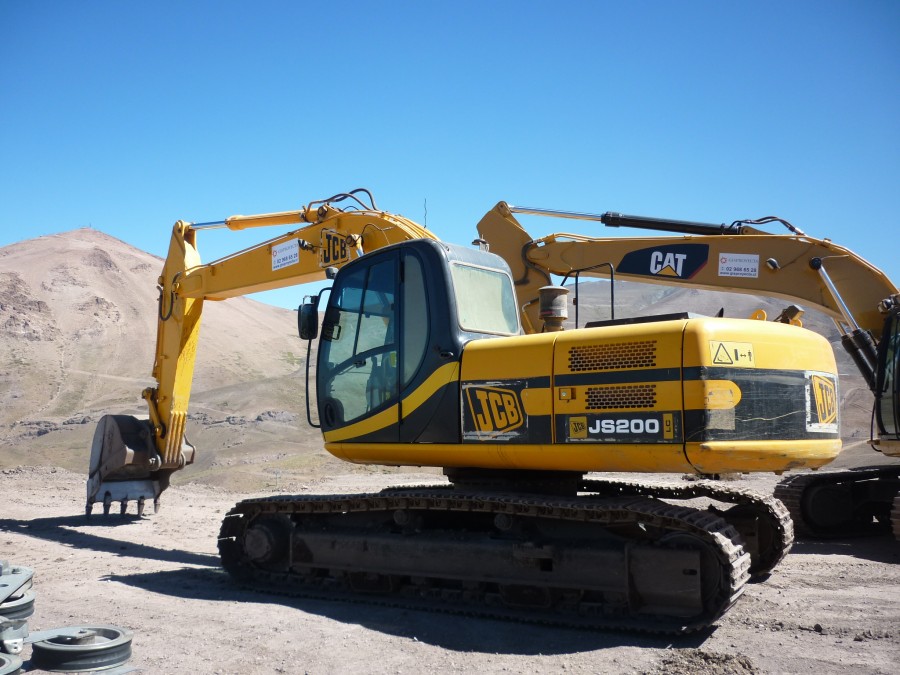

   CASE - CX160, CX180, CX210, WX170, WX220 JCB - JS150, JS160, JS175, JS180, JS200, JS210, JS220
